Plexineon Suspended Static Color

Factory Bendable Suspended 24V System

Static White, Monochrome

Overview
Specifications

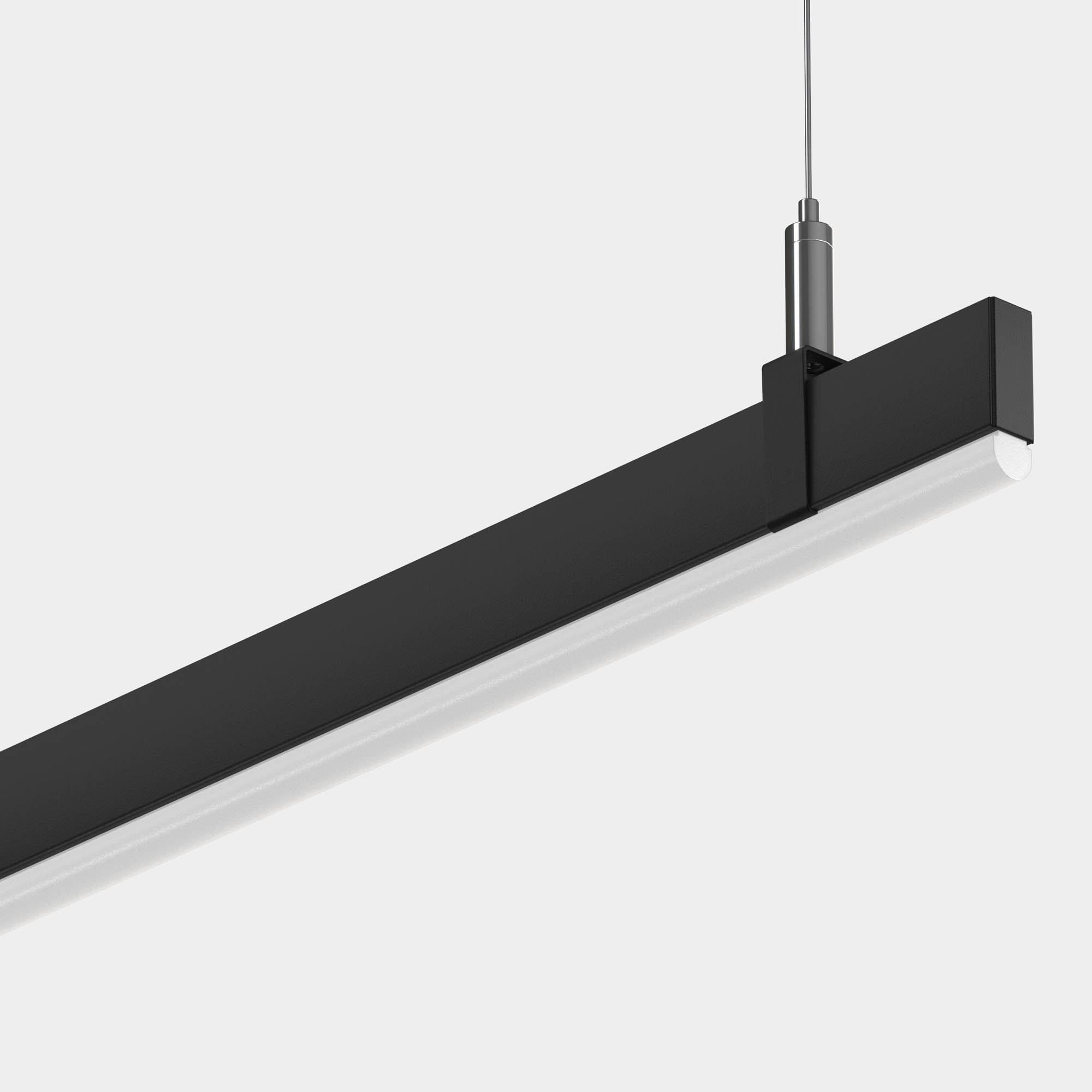

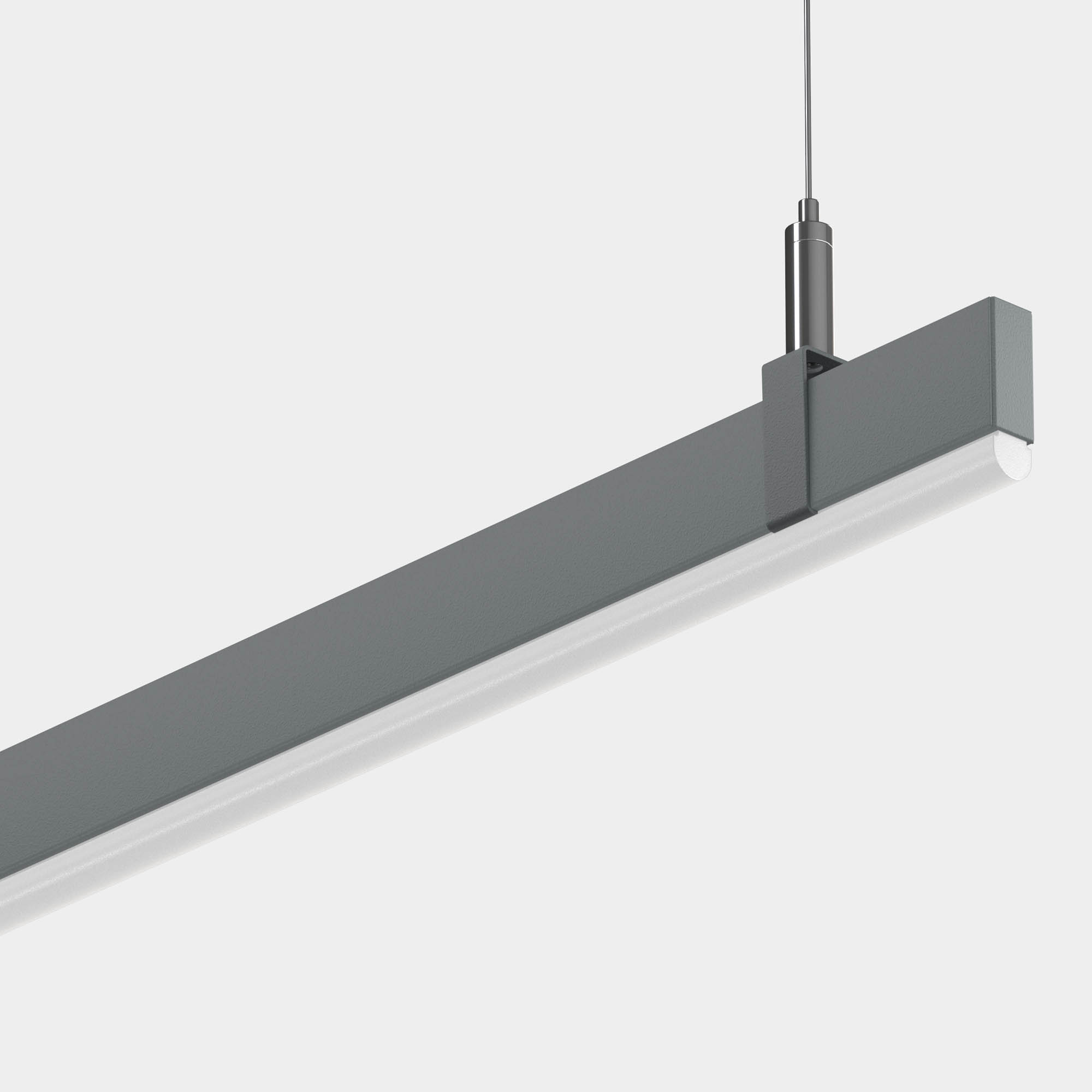

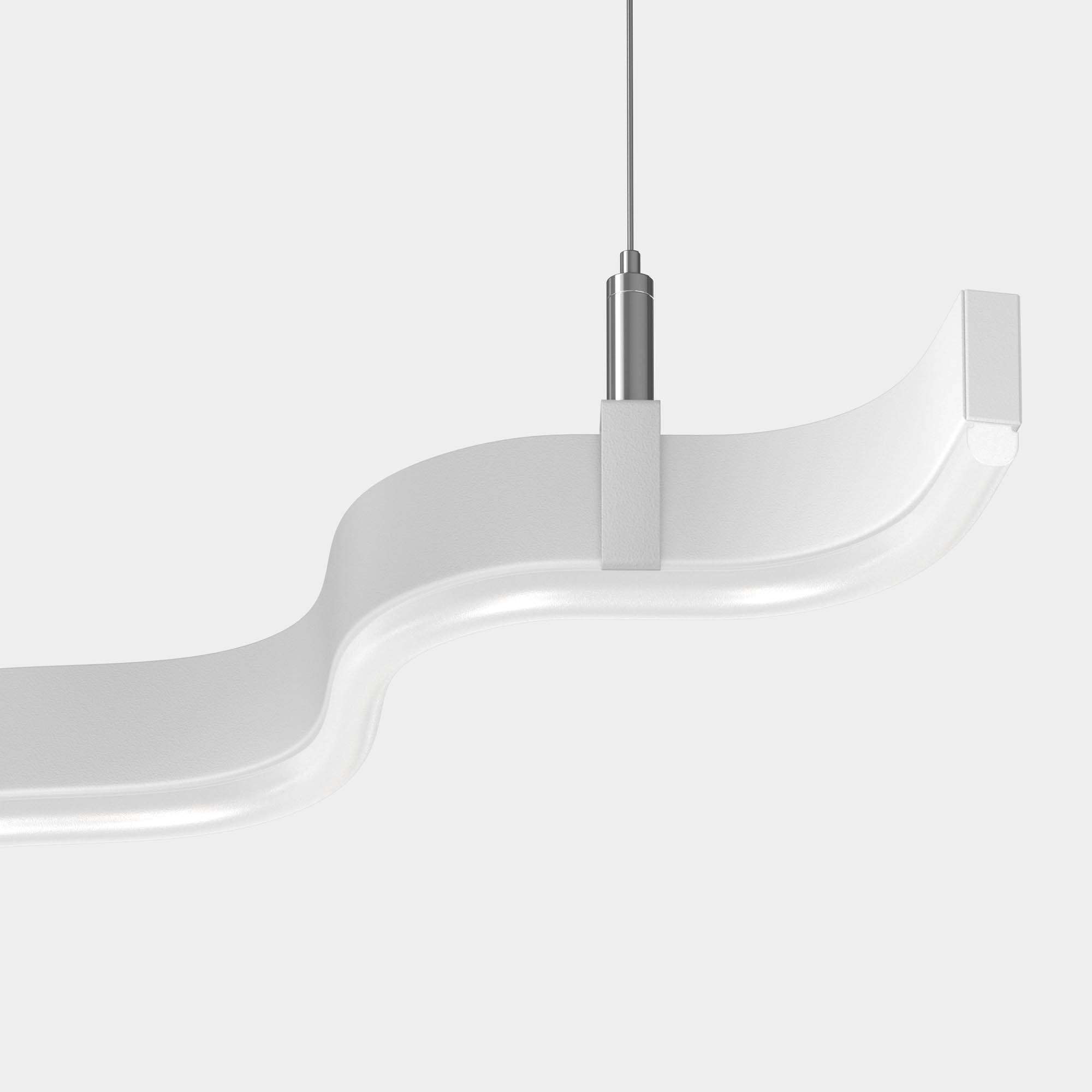

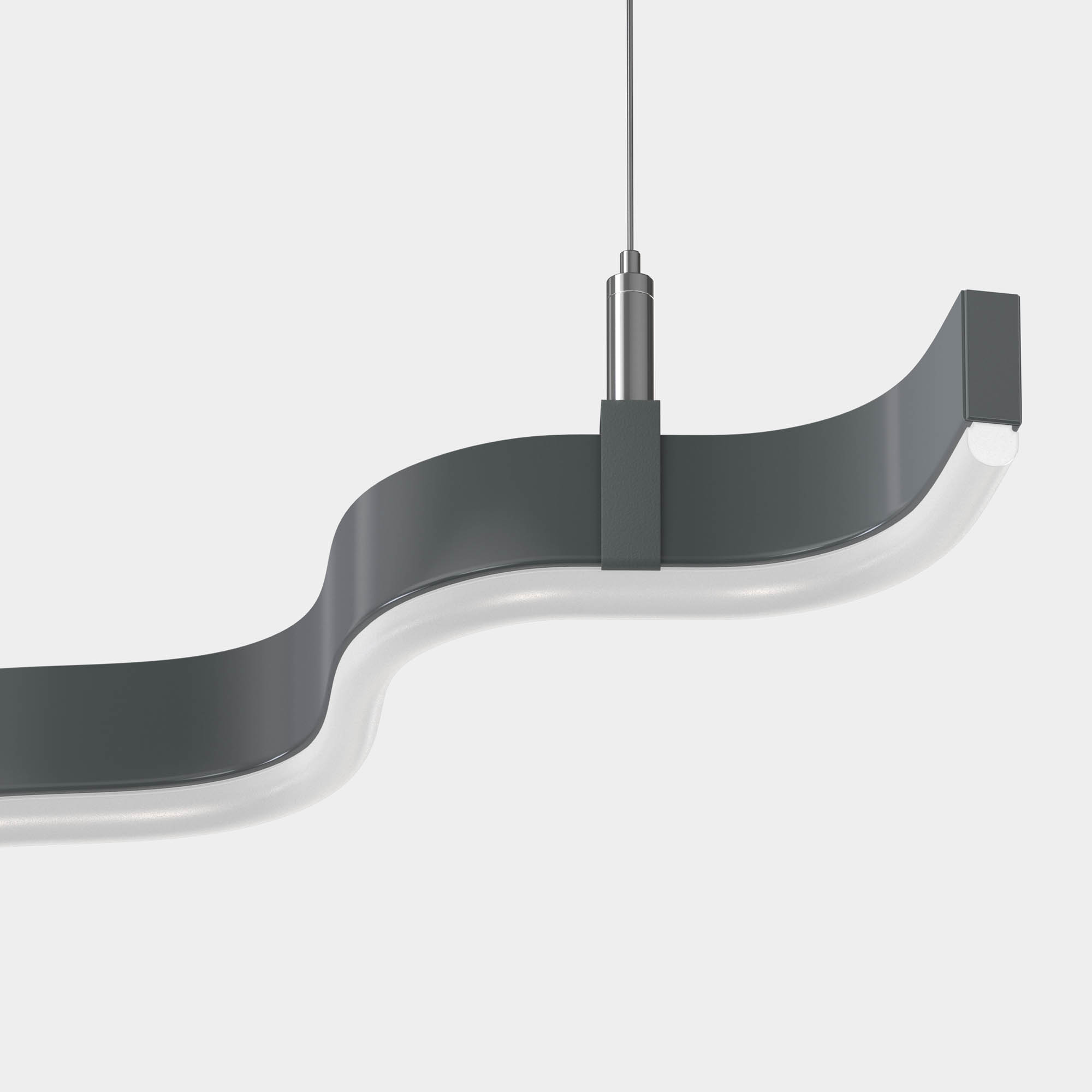

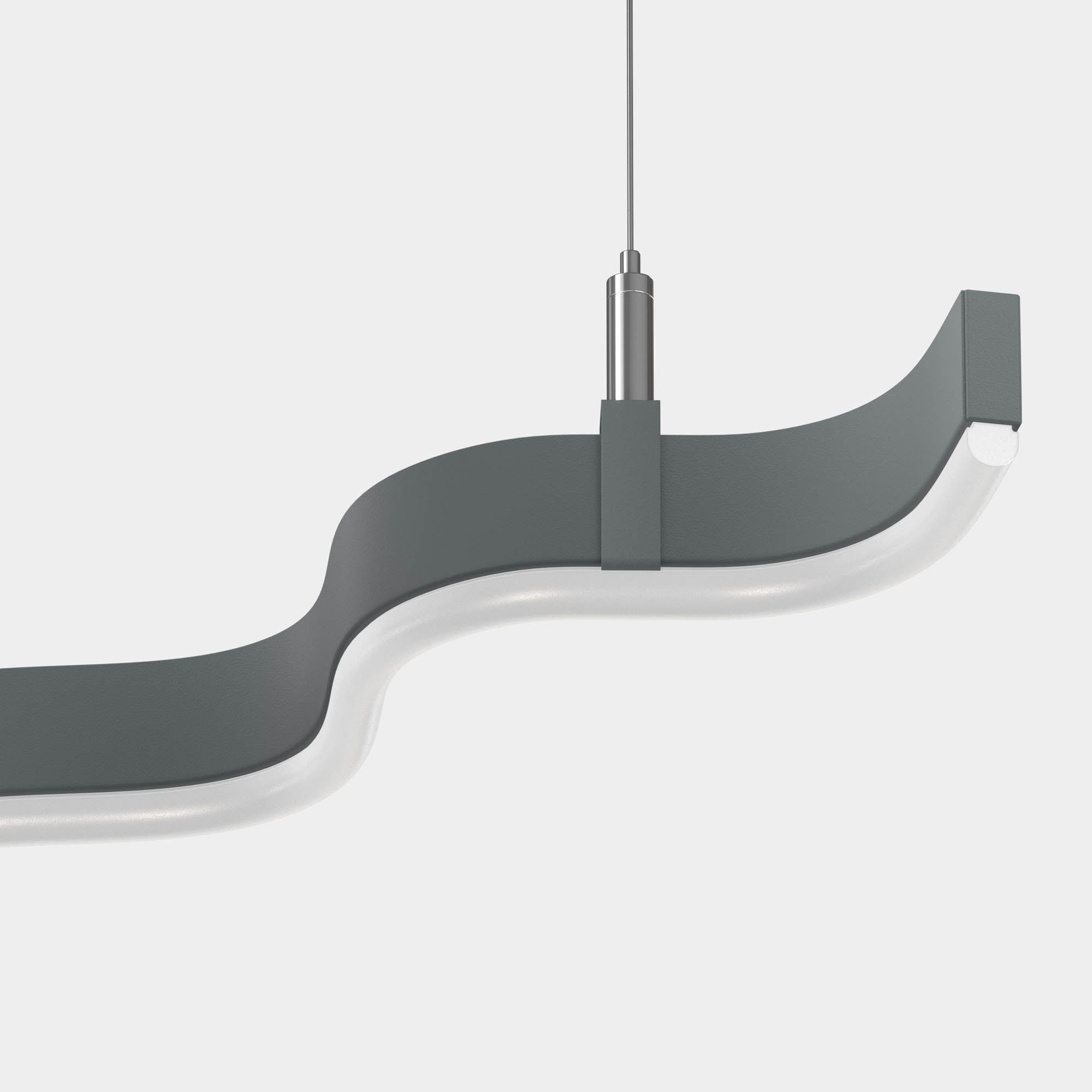

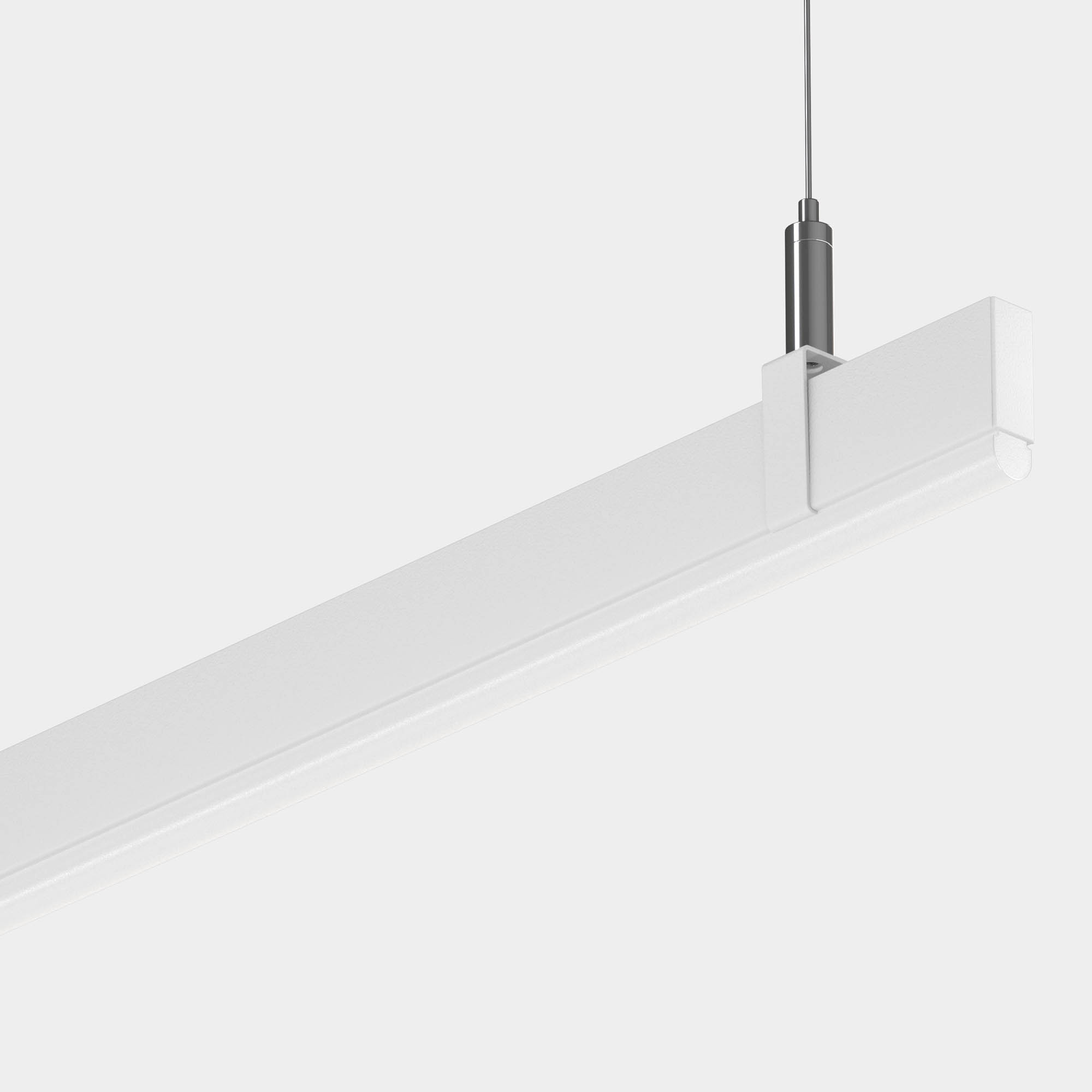

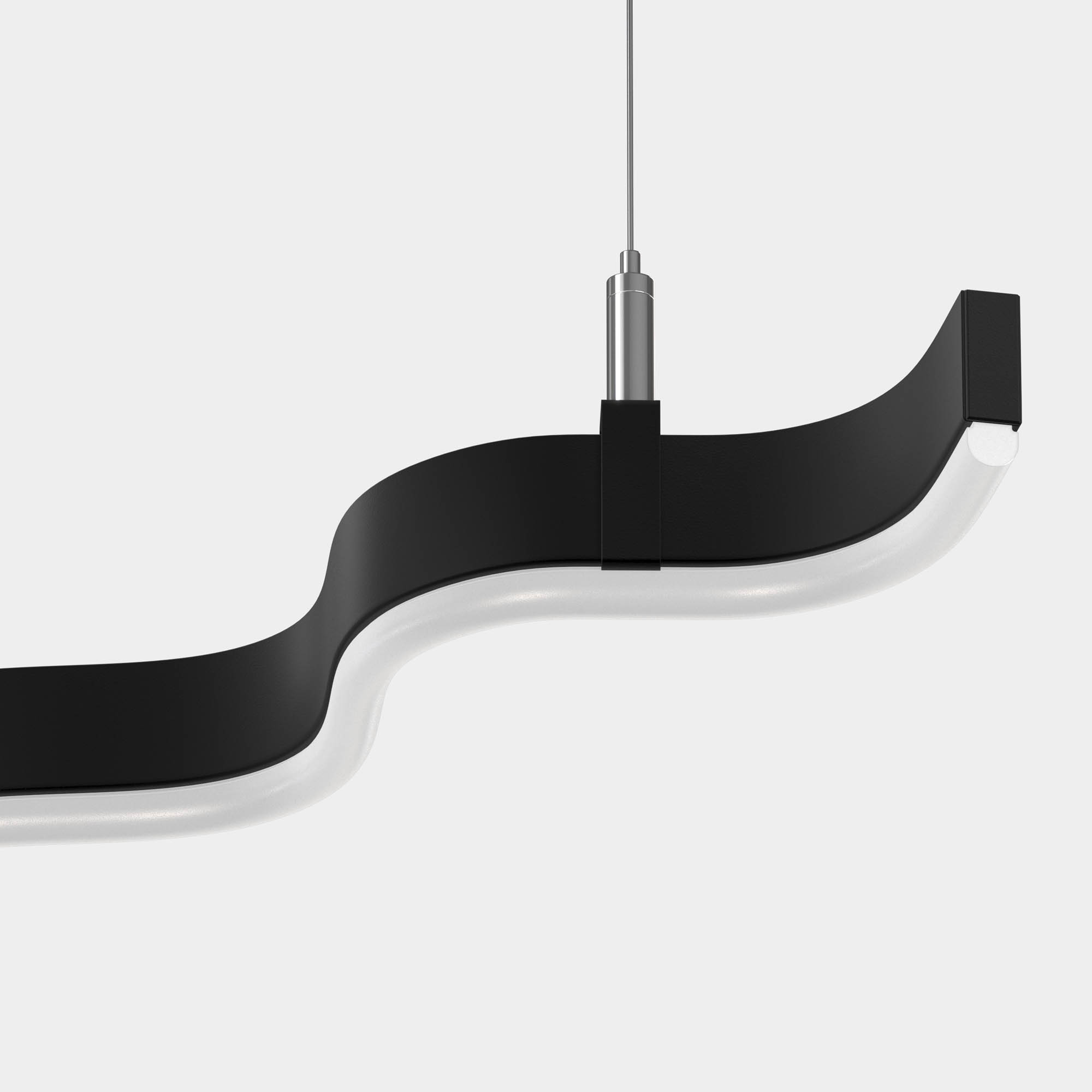

Plexineon Suspended Static Color is an architectural-grade, factory-bendable linear LED strip system designed for suspended installations. It delivers uniform, dot-free illumination in static white (2700K–4000K) and monochrome colors (Red, Blue, Green, Teal, Yellow, Magenta). Engineered for both interior and exterior environments, the system operates on 24VDC, is IP67 rated for wet locations, IK10 and 3G rated, and comes with a 5-year indoor warranty and a 3-year outdoor warranty

  • CCT: 2700K, 3000K, 3500K, 4000K
  • CRI: 90+
  • Output / ft: 11 lm/ft, 123 lm/ft, 14 lm/ft, 24 lm/ft, 50 lm/ft, 60 lm/ft, 62 lm/ft
  • Mounting: Suspended
  • Type: Bendable
  • Bend Type: Horizontal
  • Color: Monochrome, Static White
  • Wattage / ft: 1.2 W/ft, 1.4 W/ft, 1.5 W/ft, 2.6 W/ft, 2.7 W/ft, 2.9 W/ft, 3.2 W/ft
  • Lens Aperture: 0.40 inch
  • Size: 0.40 in
  • Height: 1.44 in
  • Lens: Frosted
  • Operating Temperature: -40°F to 140°F
  • Sustainability: RoHS/Reach
  • Made In: Made in America
  • Warranty: 5 Years
  • Product Number: PX
